5″ STD LONG RADIUS 180 RETURN BEND

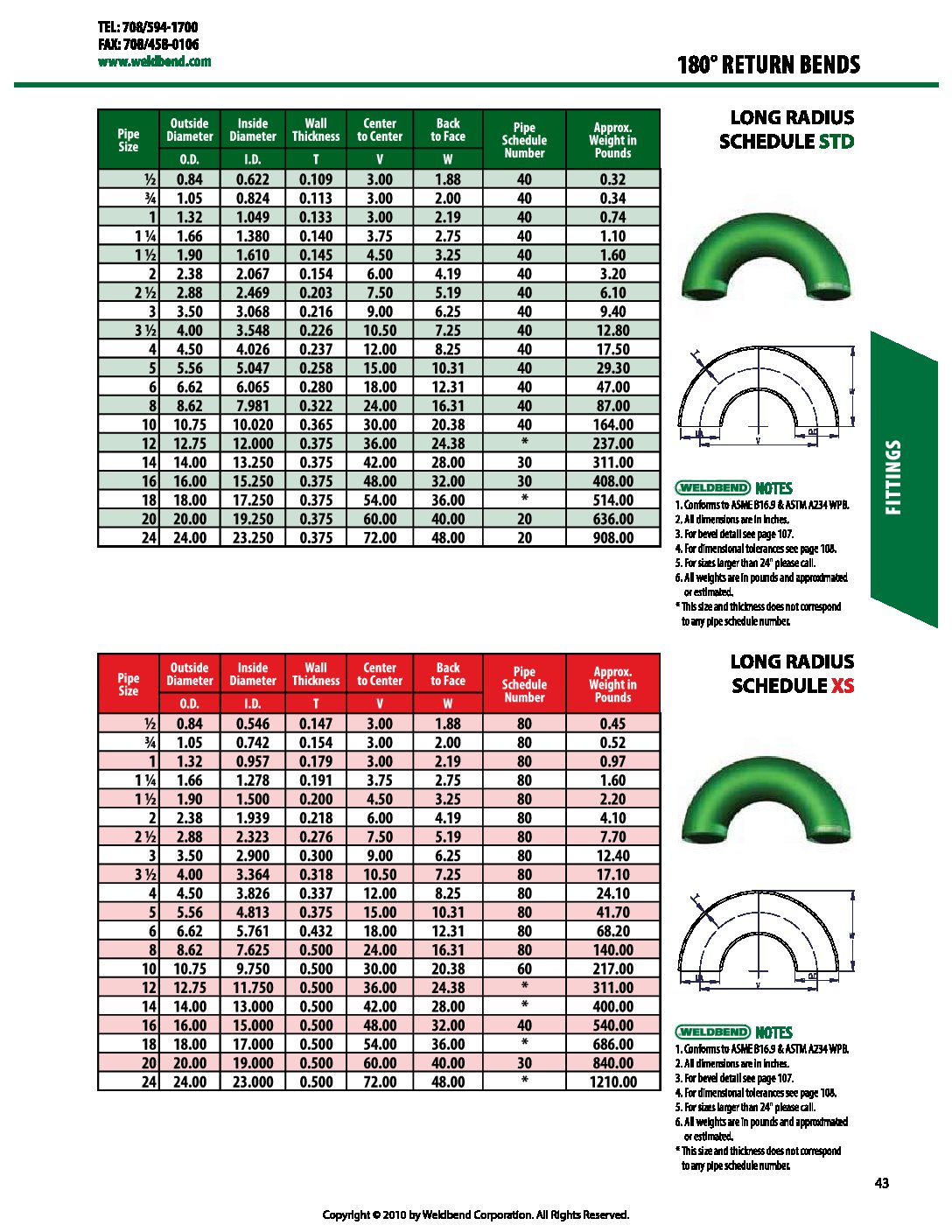

DIMENSIONAL DOCUMENT: STD XH LR 180 RETURN

Description

OPV Part#: WF18050
Pipe Size: 5″
Fitting Type: LONG RADIUS 180 RETURN BEND
Body Material: CARBON STEEL
Outside Diameter O.D.: 5.56
Inside Diameter I.D.: 5.047
Wall Thickness “T”: 0.258
Center to Center “V”: 15.00
Back to Face “W”: 10.31
Pipe Schedule: STD/S40
Approx. Weight: 29.30
