4″ 150# CARBON STEEL LAP JOINT FLANGE

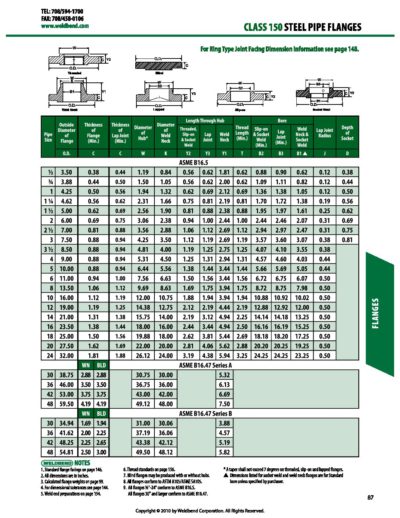

DIMENSIONAL DOCUMENT: STD XH LAP JOINT STUB END

Description

OPV Part#: F1LJ40
Pipe Size: 4″
Outside Diameter Flg: 9.00
Thickness of Flg “C” (MIN): 0.94
Diameter of Hub* “W”: 5.31
Length through Hub “Y3”: 1.31
Bore “B3”: 4.60
Lap Joint Radius: 0.44

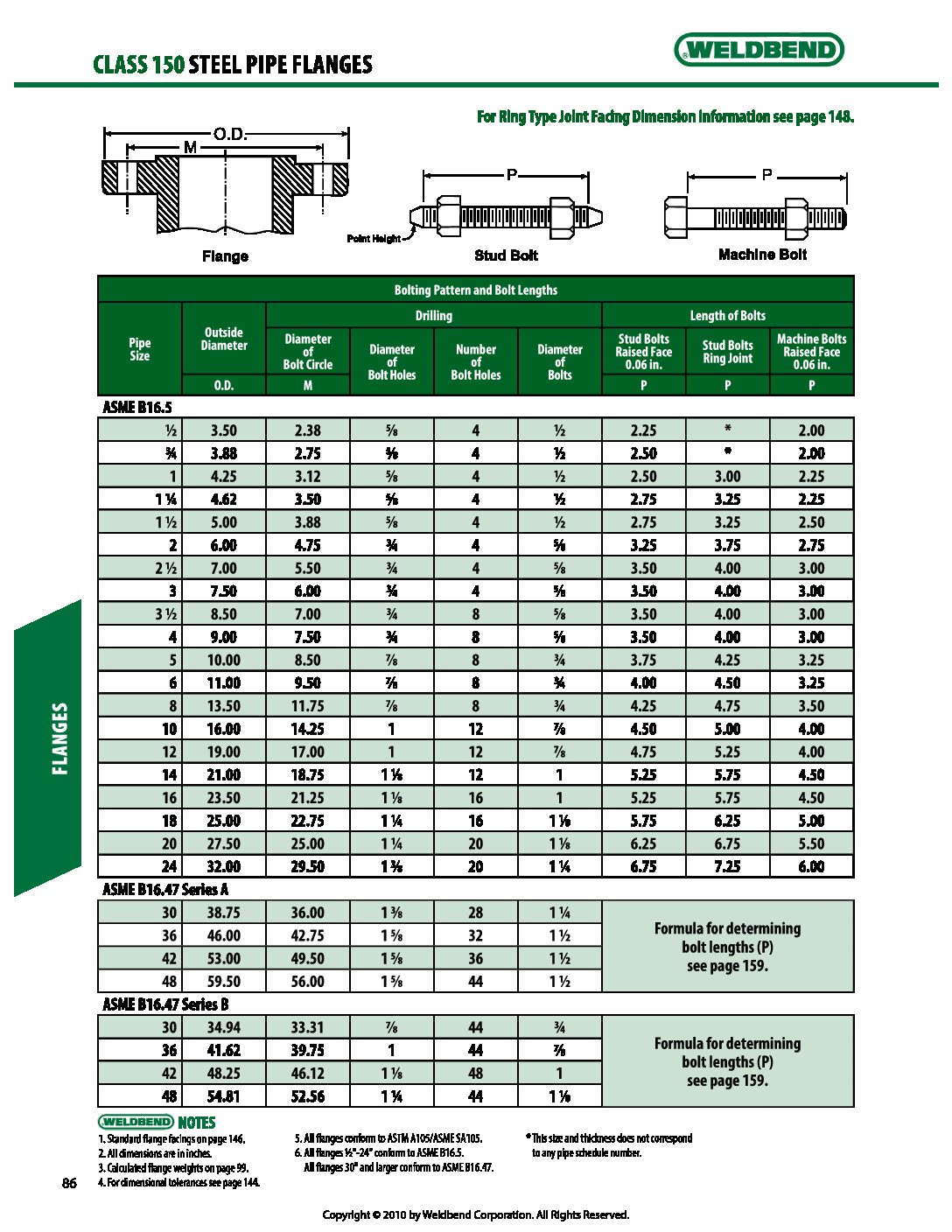

Dia. of Bolt Circle: 7.50
Dia. of Bolt Holes: 3/4
# of Bolt Holes: 8
Dia. of Bolts: 5/8
Stud Bolt Length: 3.50
Machine Bolt Length: 3.00
Approx. Weight: 13

*Taper shall not exceed 7 degrees on threaded, slip-on and lapped flanges.
